Current stable version: 0.9.3 (November 2021)





Current experimental version: 0.9.4 (January 2022)





Supported QGIS version: 3.x





Repository and download: github.com/zoran-cuckovic/QGIS-terrain-shading

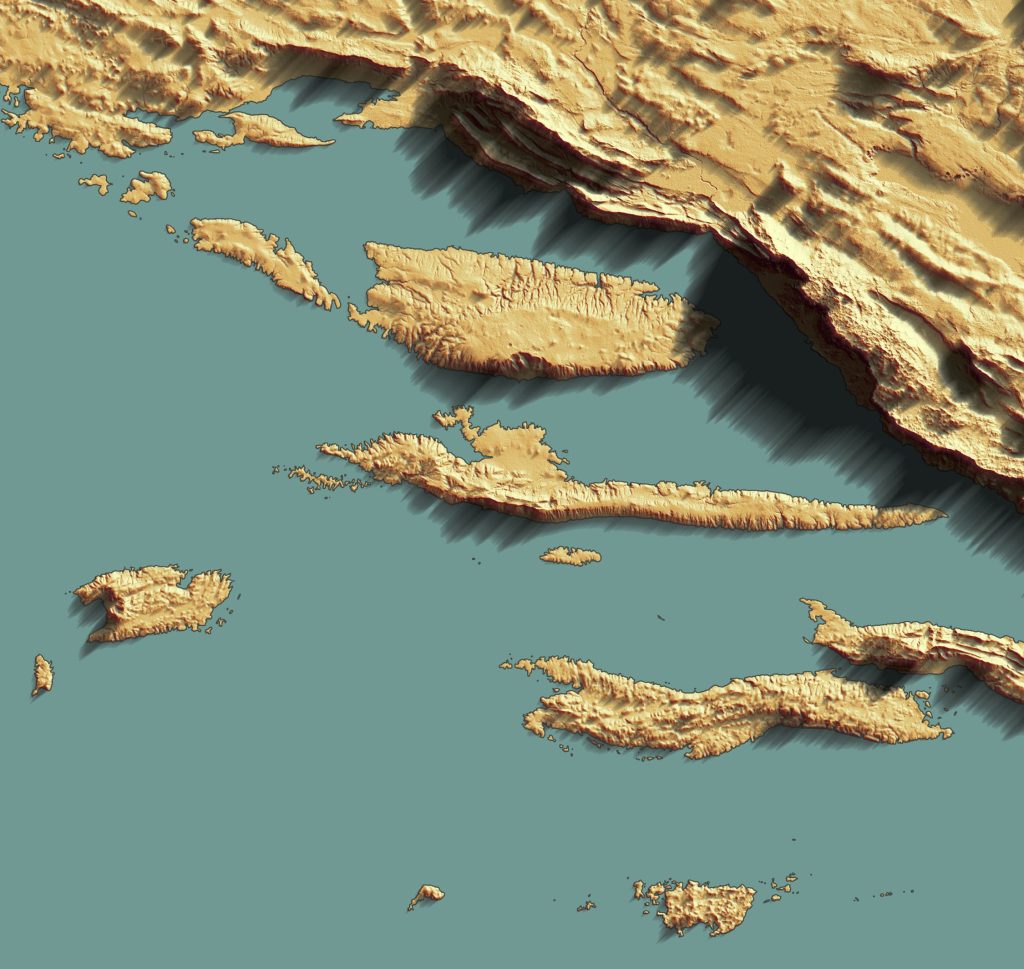

FIGURE SHADOWS





Installation





The algorithm for relief shading is available in the official QGIS plugin repository and can be installed as usual (In QGIS go to Plugins -> Manage and install … ). Be sure to enable experimental plugins.





If the standard installation does not work, the plugin can be downloaded for the repository (above) and installed manually: First you need to locate your QGIS plugins folder. On Windows it would be ‘C:\users\username\AppData\Roaming\QGIS\QGIS3\profiles\default\python\plugins’ (or just do a file search for ‘QGIS3’ …)





Plugin code can then be extracted in a new folder inside the plugins folder (you should name the folder TerrainShading). Take care that the code is not inside a subfolder – the folder structure should be like this:





QGIS3\profiles\default\python\plugins\
    [some QGIS plugin folders…]
    TerrainShading
        dem_shading.py
        metadata.txt
        [other files and folders…]





Finally, there is a version made as QGIS script, which can be downloaded from the script branch and installed as a QGIS script.





Manual





Data input for both algorithms should be a digital elevation model (DEM) in raster format. Note that it has to be projected in a metric coordinate system. Please check the post explaining the problems with unprojected data (WGS84), especially when considering to open an issue in the main repository.





Shadow depth algorithm





Sun direction marks the horizontal position of the Sun where 0° is on the North, 90° on the East and 270° on the West.





Sun angle marks the vertical position of the Sun.





Smooth filter is a simple 3×3 average filter which eliminates noise and sharp transitions in the output.










Remarks — For cartographic uses, the best result is achieved when varying levels of transparency according to shadow depth or length. You can download and apply QGIS style definition files from the style library in this repository. The algorithm is explained in detail at LandscapeArchaeology.org/2019/qgis-shadows/.










Ambient occlusion algorithm





Radius specifies the radius of the sphere that is analysed around each data point.





Denoise will apply a 3×3 average filter, as above.





Remarks — Algorithm calculation time is directly dependant on the radius of analysis. For more information on scientific concepts behind ambient occlusion, see the post on LandscapeArchaeology.org/2020/ambient-occlusion.





Hillshade





This algorithm calculates surface shading – hillshade – for elevation models. The method is based on Lambert’s reflectance model.





Sun direction and sun angle parmeters define horizontal and vertical position of the light source, where 0° is on the North, 90° on the East and 270° on the West.





Bidirectional hillshade combines a standard hillshade with one made from a perpendicular direction. IMPORTANT: this will work only when lateral terrain exaggeration is set above 1.0, preferably at 2.0 or more.





Lateral and longitudinal exaggeration introduce artifical deformations of the elevation model, in order to achieve higher shading contrast.





Denoise option is using larger search radius, producing smoother results.

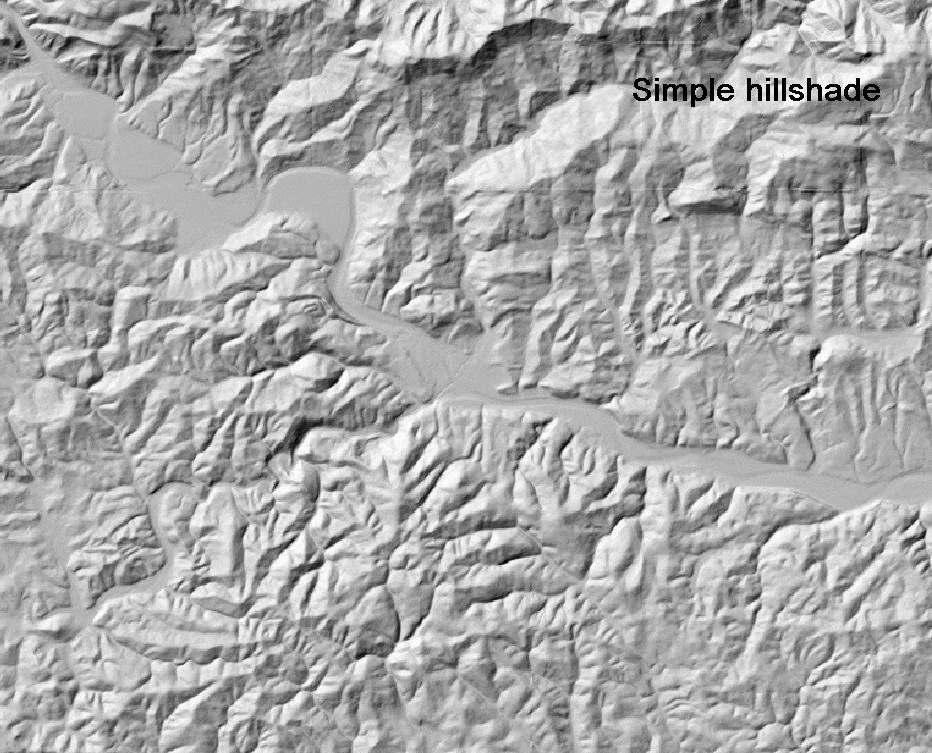

FIGURE HILLSHADES





Remarks — Lateral exaggeration will provide some shading to features that are parallel to the light source, and would normally remain invisible. For more details on algorithm used, see the post at LandscapeArchaeology.org/2020/hillshade/.





Terrain position index (TPI)





Terrain position index is expressing the relative height of each elevation point within a specified radius. Radius is determing the search radius (in pixels).





There are 3 analysis types: 1) standard TPI, 2) distance weighted and 3) height weighted. Weighted options use elevation point distance or height discrepancy as weighting factor.





Denoise option is applying a simple 3×3 smooth filter.





Remarks — The weighted method is used to eliminate local variations, close to each elevation point, or to stress the maximum height difference. In general they produce less sharp results, but with improved contrast.





Texture shading





This algorithm is based on wawelength analysis (Fourrier transform) where terrain curvature is represented as a waweform.





Alpha paramter controls the impact of wawe-forms over elevation: when set to zero, pure elevation will be returned, when set to one, only the “noise” will be retained. The optimal value is approx 0.5.





Remarks the elevation model should not contain “NoData”, i.e. empty data. These will introduce large stripes across the output raster.





See also at LandscapeArchaeology.org/2021/texture-shading/.





More information





For tutorials and in-depth discussion see:









Style library can be found in the GitHub repo.





You can signal an issue in GitHub repository.
